2 4 6 Cores Fiber Optic Terminal Box FTTH Cable Wall Box

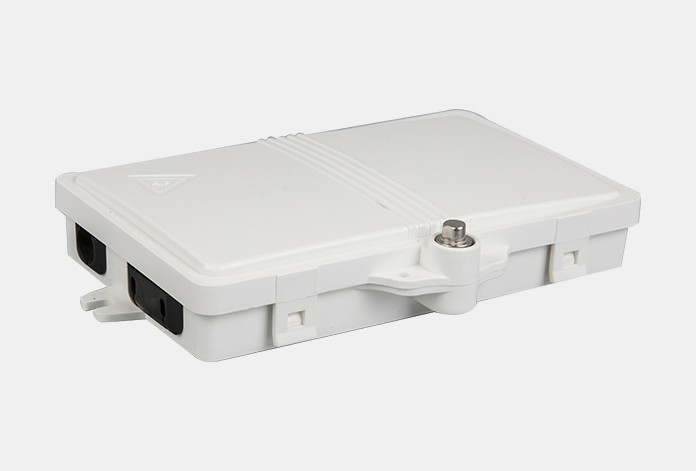

The 2 Core Fiber Optic Terminal Box is designed to hold and terminate up to 1 fiber optic cable. It provides ample space for splitters and can accommodate up to 2 fusion connectors. It also includes 2 SC adapters for easy connection. Designed to withstand outdoor environments, this distribution box ensures durability and reliability. It is an excellent cost-effective solution for FTTX networks, providing efficient cable termination and distribution.
Features
1. Total enclosed structure, be in nice shape.
2. 2 Core Fiber Optic Terminal Box is made of high quality PC+ABS
or ABS, which is resistant to moisture, water, dust and aging.
3. Clamping for feeder cable and drop cable, fiber splicing,
fixation, storage, distribution…etc. all in one.
4. Cable, pigtails, patch cords are running through own path
without disturbing each other, cassette type SC adapter
installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed
in a cup-joint way, easy for maintenance and installation.
6. Most of the types can be installed by the way of wall-mounted or
poled-mounted, suitable for both indoor and outdoor uses.
7. Distributing optic into 2-48 paths by PLC splitter, protecting
optic fiberto terminal, easy to operate.
8. Can be installed with PLC splitter, optional splice tray, lock
with a key
9. Entering fiber cables of 1~48 cores capacity fuse and splice
with pigtails, connecting PLC splitter pigtails.
10. FTTH cable connecting the PLC splitter pigtails through SC, FC,
LC duplex adapters panel, entering into building or home.
11. IP 65 Protection Rating, antirust, dust proof, impact
resistance, excellently stable performance, long lifespan.
12. OEM and customer's designation are acceptable
Specifications
| Dimensions and Capacity | |
| Dimensions (H*W*D) | 196mm*144mm*41mm |
| Color | White |
| Weight | 245g |
| Adapter Type | SC Simplex/LC Duplex |
| Adapter Capacity | 2 pcs |
| Splitter Type | 1*2 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 1 in /2 out |
| Cable inlet caliber | 9mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Working Temperature | -40°C～+65°C |
| Shipping Information | |
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; |
| Wall mount accessories, 1 set | |
| Package Dimensions(W*H*D) | 200mm*150mm*56mm |
| Material | Carton box |
| Weight | 270g |
