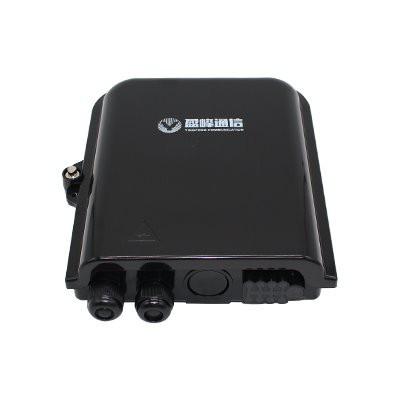

FAT Optical Fiber Distribution Box Terminal Box 8 Core Water-Proof
This 8 Core Optical Fiber Distribution Box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 8 fusions, allocates 8 SC adapeter and working under outdoor environment. It is a perfect cost-effective solution-provider solution-provider in the FTTX networks.
Structure and characteristics
1.Dust-proof design with IP-66 protection level.
2.Integrated with splice cassette and cable management rods.
3.Manage fibers in a reasonable fiber radius condition.
4.Easy to maintain and extend the capacity.
5.Suitable for the fusion splice or machanical splice.
6.Embedded type surface,easy for installation and removal
7.2port cable entrance for patch cable.
Yingfeng's 8 Core Optical Fiber Distribution Box offers a wide range of import and export options that can be selected based on specific needs. Yingfeng's 8 Core Optical Fiber Distribution Box provides different number of import and export options, and users can choose the right number according to their needs.
Specifications
Dimensions and Capacity | |

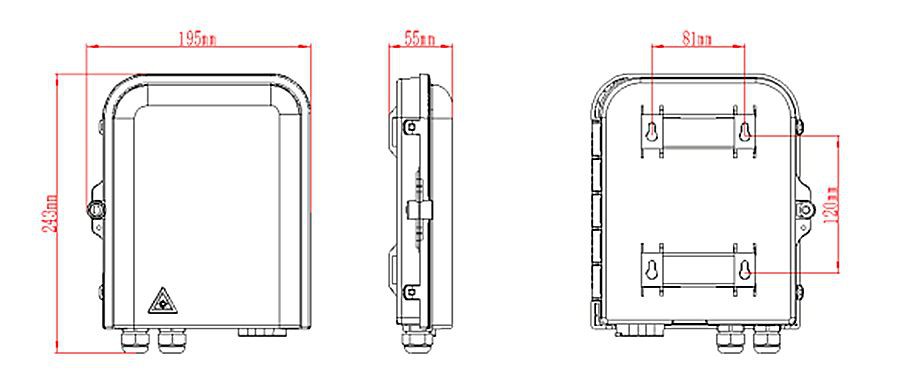

Dimensions (H*W*D) | 243mm*195mm*55mm |
Color | White |
Weight | 560 g |
Adapter Type | SC Simplex/LC Duplex |
Adapter Capacity | 8 pcs |
Splitter Type | 1*8 mini type splitter |
Number of Cable Entrance(s) and Exit(s) | 2/8 |
Cable inlet caliber | 12mm |
Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
Working Temperature | -40°C～+65°C |
Shipping Information | |
Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; |
Package Dimensions(W*H*D) | 248mm*205mm*60mm |
Material | Carton box |
Weight | 600 g |
Application
8 Core Optical Fiber Distribution Box is a device used for distribution and connectivity in fiber optic networks. It is commonly used in Fiber-to-the-Home (FTTH), Fiber-to-the-Building (FTTB) and Fiber-to-the-Room (FTTR) application scenarios.
