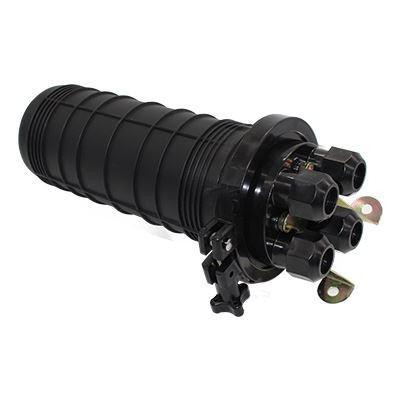

48 Core Dome Fiber Optic Splice Closure Superior Protection for Splices

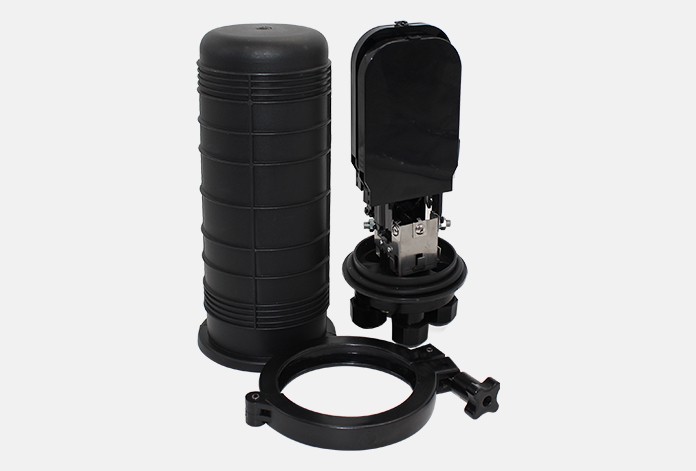

The Dome 48 Core Fiber Optic Splice Closure features a dome design that provides a sealed and protected environment for fiber optic splices. The dome design provides superior protection from moisture, dust, and other environmental factors, ensuring the long-term reliability of fiber optic connections. Holds up to 48 individual fiber optic splices and includes splice trays to provide ample capacity for splicing and organizing fiber optic cables as well as protection for individual fiber optic splices.
A key aspect of the Dome 48 Core Fiber Optic Splice Closure is its ability to provide a safe and sealed environment for splices and cables. It is mechanically sealed with gaskets, seals or gel-filled compartments to maintain a watertight seal and prevent moisture from entering the splice. The dome closure is designed to be weatherproof and protect against ingress of water, dust and other contaminants.
Product Features
1. Protection grade: IP68
2. Can be used in a variety of environments, including overhead,
underground or direct burial applications.
3. High quality impact resistant material PP, ABS
4. Cable sealing method: silicone rubber mechanical sealing
5. Access to splice points and cables in the splice box without
interfering with existing connections, easy to install and
maintain.
Item | YF48V-A02 | Cable ports | 4 Entries |
Number of fiber fusion | 12-48 (bunchy) | Capacity of splice tray | 12/24 (bunchy) |
Dimension (mm) | 295×185 | Weight(exclude outside box) | 0.9KG |
Cable diameter(mm) | Ф22 | Max capacity of fiber | 48(bunchy) |
Working temperature | -40℃~65℃ | Insulation resistance | ＞2×104MΩ |
Sealing Type | Mechanical Seal Type | Installation Type | Pole-Mount |
Packaging and transportation
|
|
The Dome 48 Core Fiber Optic Splice Closure itself usually comes in a sturdy case that provides some protection. During packaging, it is usually placed inside a suitable foam sleeve to further protect its surface from scratches and damage. Accessories are supplied with the product and they are usually placed in specific pouches or compartments to prevent rubbing against each other and confusion.
Mode of transport
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea , these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
