| Overview |
Fiber Optic Splice Closure (FOSC) is a member of dome closure series, the product adopts fully-mechanical sealing structure, only using silicone rubber sealing gasket to ensure the good sealing performance of fiber cable with the diameter within 18mm. The function of the product is in the optical transmission link, to provide through, branching connection and related connecting protection.
| Quick Details |
Sealing Type: Heat Shrink Type
Dimensions: H460 * D223MM
Weight: 0.9KG
Cable Ports: 4 Entries
Diameter Of Cable Ports: 3 Round: Φ23mm 1 Oval:Φ33*57mm
Number Of Fiber Fusion: 12-48 (bunchy)
Capacity Of Splice Tray: 12/24 (bunchy)
Max Capacity Of Fiber: 48 (bunchy)
Working Temperature:-40~65°C
Protection Grade: IP68

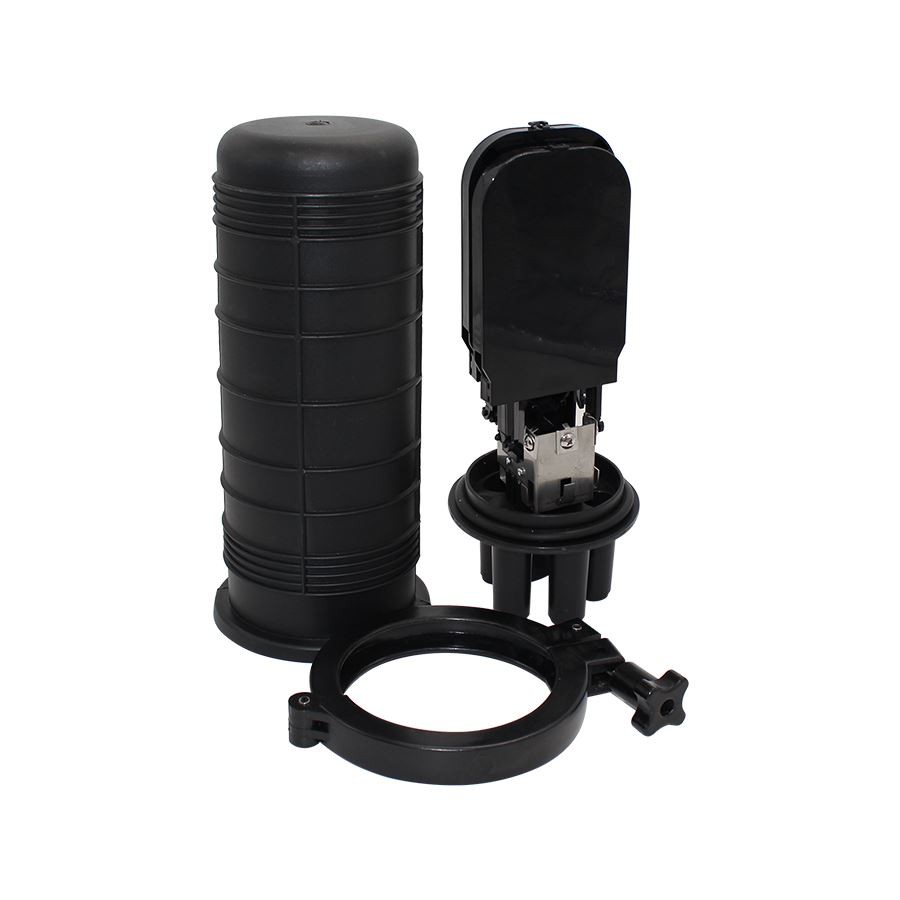

48 Cores Dome Type FOSC |
| Structure Features |
1.Heat shrink sealing structure.
2. High quality industrial plastic body material,Solid structure, perfect outline, thunder, erosion .
3. This model has three small round ports and one large round port
4. Suitable for cable diameter: 1xOval:Φ33x57mm 3x Round:Φ23mm
5. Support aerial, underground, pipeline mman holes, hand holes
6. Protection level reachers IP68
7.Maximum capacity: 48 fibers
8. Number of splice trays: 2 pcs x 24F
| Specifications |
Item | YF48-B02 | Cable ports | 4 ports |
Number of fiber fusion | 24-48 Cores | Capacity of splice tray | 24 cores tray |
Dimension (mm) | 460×223mm | Weight(exclude outside box) | 1.5KG |
Cable diameter(mm) | 1xOval:Φ33x57mm 3x Round:Φ23mm | Max capacity of fiber | 48 Cores |
Working temperature | -40℃~65℃ | Insulation resistance | ＞2×104MΩ |
Sealing Type | Heat shrink sealing | Installation Type | Pole-Mount |
Dome Type Fiber Optic Splice Closure provides a cost-effective solution for FTTH applications. we provide this type of box with pre-installed fiber splitters, adapters, splice trays or pre-terminated pigtail assemblies, which help to reduce installation time and cost and satisfy different requirements of customers.
| Applications |
1.Suitable for bunchy fibers
2.Aerial, underground, wall-mounting.
| Company Show |
Yingfeng Optical Communication was established in 1982,through the years rapid and sustainable development currently we own the Yingfeng Modern Industry Zone with 600 workers and 35000m production area, addtionally in year 2009 we set up Shenzhen branch manufacturing facility which covers 3000m area, and 150 employees mainly producing the passive devices like MPO/MTP ,Fiber optic patchcord, pigtail,PLC splitters,etc. We feel proud that Yingfeng manufactures over 0.5 Billion sets of fiber optic connectors and adapters annually which covers almost 50% of global production capacity,recongnized as the Top manufacturer of connectors and adapters accessories.
As High-tech enterprise,Yingfeng keeps spending over 5% of revenue on R&D developing new fiber optic products, improving the production lines to promote automation and efficiency. Yingfeng Communication is always dedicated to do contributions to the Optical Communication Industry and Society
