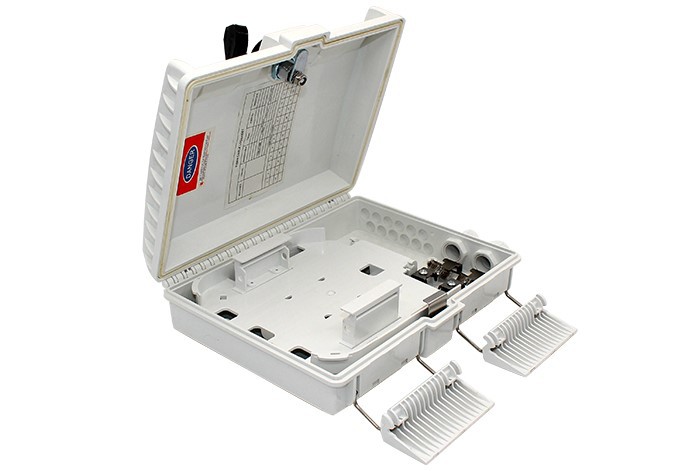

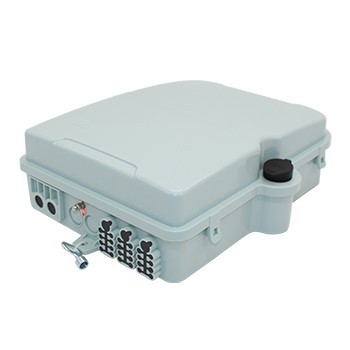

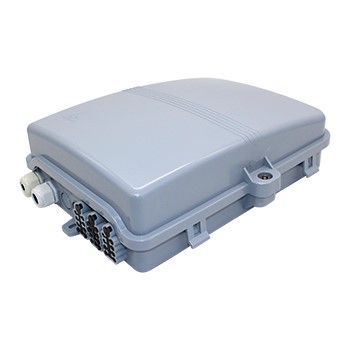

12 Core Optical Fiber Distribution Box
A 12-core optical fiber distribution box, also known as a fiber
distribution panel or termination box, is a device used to manage
and distribute fiber optic connections in indoor or outdoor
environments. It provides a centralized point for terminating,
organizing, and protecting fiber optic cables and connections.
1. Splice and patch cord use Separation structure, easy to Capacity
expansion and maintenance；
2. The 12 Core Optical Fiber Distribution Box is constructed of
high quality plastic for an attractive appearance.
3. Internal turnover structure,easy to maintenance；
4. Protection levels:IP55
1. Connector attenuation(insert,interchange,repeat)≤0.3dB.
2. Return loss:APC≥60dB,UP≥50dB,PC≥40dB.
3. High - voltage protection grounding device:
4. Insulation resistance :≥1000MΩ/500V(DC).
5. Withstand voltage :≥3000V(DC)/1min.
12 Core Optical Fiber Distribution Box is a device for fiber optic
communications and networking that distributes fiber optic signals
to multiple end devices. It is suitable for application scenarios
such as fiber-to-the-home, telecommunication networks, cable TV and
LAN, providing high-speed and stable fiber optic connection and
transmission.
Dimensions and Capacity | |
Dimensions (H*W*D) | 267mm*208mm*96mm |
Weight | 1 KG |
Adapter Capacity | 12 PCs |
Splitter Type | 1:12 module type splitter |
Number of Cable Entrance/Exit | Max Diameter 13mm, up to 2 cables entrance0, 12 cables exist |
Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
Shipping Information | |
Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 2 keys; |
Package Dimensions(W*H*D) | 270mm*220mm*116mm |
Material | Carton box |
Weight | 1.2KG |
Lead Time | 10-15 working days normally |
More Products
In addition to the 12 Core Optical Fiber Distribution Box, Yingfeng
also offers a wide range of fiber optic terminal boxes with other
core counts. These fiber optic terminal boxes with different core
counts can be used in fiber optic networks of different sizes and
needs, providing the right connectivity and distribution solutions.
Whether it is a home network, business network or fiber access
network of a telecom operator, you can choose the appropriate fiber
optic terminal box to meet your needs.
Factory Show
Why choose us?
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand
business.
6.We have been 30 years experience in this field. We are the
prefessional supplier that you can trust.
Frequently Asked Questions
1. Can I request customized services?
You can customize a product through the product details page or by contacting your account manager. We will do our best to meet the needs of all customers.
2. I can not find the product I need. Can it still be purchased through Zhejiang Yingfeng?
Absolutely. As a well-known manufacturer and supplier of fiber optic products, many of our products are not listed on the website. Contact our customer service team or your dedicated account manager. They can help you place an order for the product you need.
3. Do you provide after-sales service?
Of course. If you have any questions after receiving the goods, please contact us in time, we will help you deal with it as soon as possible
4:What's your best price?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
5.How long is your product warranty?
The warranty period is 1 year (the warranty period will provide
free repairs, except for consumables). After the warranty period,
accessorie
