FC/Upc To FC/UPC Fiber Optic Patch Cord Bandwidth 200Mbps 500Mbps

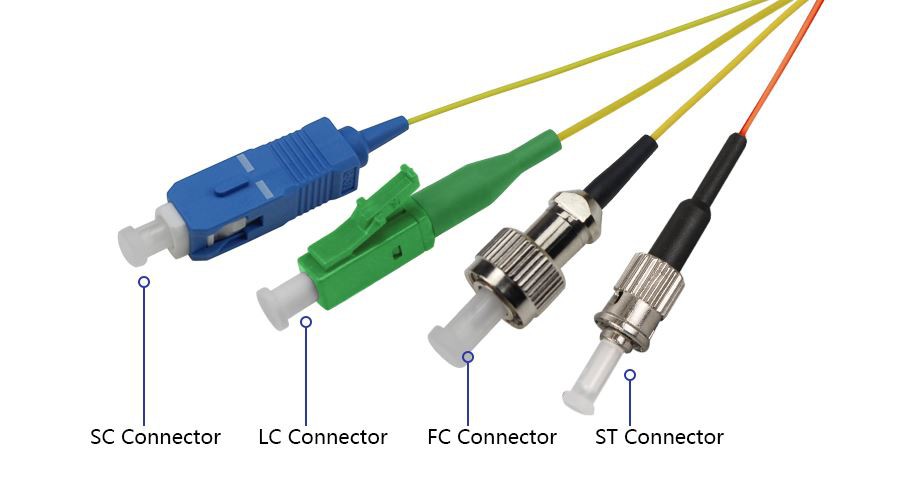

The FC fiber patch cord is a fiber optic cable used to attach one device to another for signal routing. Normally, there are 4 types connector: FC/SC/LC/ST,3 types ferrule: PC, UPC, APC.
FC stands for fixed connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
Yingfeng provides a full set of fiber optic patch cable customization services, such as fiber optic connectors, length, color, fiber grade, specifications, materials, packaging, etc.
Precautions for the use of FC fiber patch cord:The optical modules at both ends of the fiber optic patch cord must have the same transmitting and receiving wavelengths, which means that both ends of the fiber must be the same wavelength optical modules, and a simple way to distinguish them is to have the same color of the optical modules.
Patch Cord information
1. Ferrule End-face: PC, UPC, APC
2. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
3. Cable Quantity: Simplex or Duplex
4. Cable Diameter:0.9mm,2.0mm,3.0mm
5. Cable Length: 1, 2, 3 meter or customized
6. Cable type: PVC, LSZH
Parameters
Type | SM | MM | ||
Polishing | PC | UPC | APC | PC |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Durability | 1000 times | |||
Operating Temperature | -40-85°C | |||
Cable Diameter | 0.9mm, 2.0mm, 3.0mm | |||
Cable sheath | PVC or LSZH | |||
Application Scenarios
1.Local area networks, including FTTH and FTTB
2.CATV system
3.Telecommunication networks
4.Data processing networks
More Products
Company Profile
Established in 1982, the company mainly produces fiber optic connectors, fiber optic adapters, fiber optic patch cords, fiber optic splitters, fiber optic terminal boxes, etc., which are widely used in FTTH, FTTB and other fields.
We are committed to providing high quality products, offering customized services and solving technical problems for our customers.
In order to ensure the quality of products and improve the inspection and testing capability, we have established our own laboratory and product testing center, and introduced advanced corresponding testing equipment, each product must be tested by the equipment to ensure the service life of the products.
Our Certificate
Why choose us?
1. Factory direct sales, the best price
At the same price, we offer the best quality products.
2. Delivery time: 7-10 days
The company has a large group of employees who have been stable for more than ten years. To ensure that the delivery time can be guaranteed at any time.
3. High quality: 100% testing before shipment
4. Satisfactory service: a team dedicated to after-sales service, including installation instructions and technical support. xiang, solved within 8 hours, after-sales service
