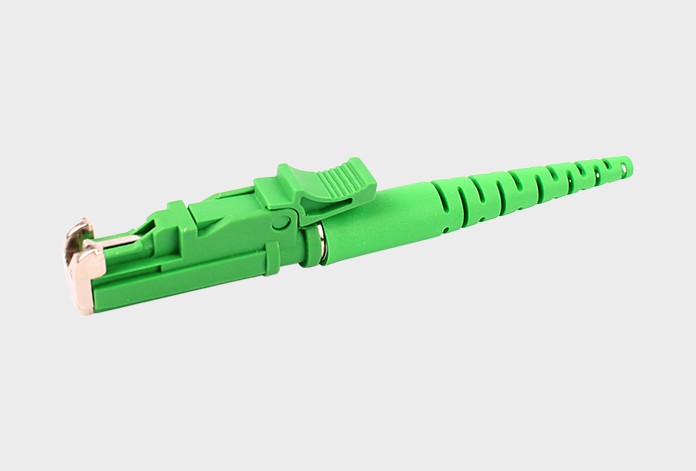

Single Mode E2000 APC Connector 2.0mm Simplex Fiber Optic Cable Durability

The connector is easy to install, and the push-pull locking mechanism makes the connector emit a crisp "click" sound when it is fully inserted. E2000 2.0mm Connectors are divided into SM and MM, PC and APC, and are combined with European standard EM186270 and international standard IEC 61754-15.

It should be noted that when installing the E2000 2.0mm Connector, care should be taken to keep the optical fiber clean and smooth to avoid contamination and scratches on the surface of the optical fiber, which will affect the quality and reliability of the optical fiber connection. In addition, you need to select the appropriate E2000 2.0mm Connector according to the specifications and requirements of the equipment to avoid mismatch.

parameter	E2000 2.0mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um

Application

The E2000 2.0mm Connector is suitable for a variety of applications, such as fiber optic communication systems, fiber optic sensors, fiber optic test instruments, etc. It is usually used for single mode fiber connection, which can achieve high speed and high quality optical signal transmission. The E2000 2.0mm Connector is typically used for single-mode fiber optic connections for high-speed, high-quality transmission of optical signals. the E2000 2.0mm Connector is very easy to install and remove, and can be plugged and unplugged to complete the connection, so it is very suitable for on-site installation and maintenance.

About US

Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Our company offers a wide range of high quality products such as optical fiber connector, optical fiber adapter, Fiber Optic patchcord, pigtail, PLC splitters, etc. We ensure that our products meet international standards. We are committed to providing the highest standard of products and all our products are professionally tested.

Frequently Asked Questions

1.Are you a factory or a trader?

......We are the factory.

2.Do you provide sample services?

......Yes, we will provide samples at request.

3.How do we pay

......Multiple payment methods such as T / T and Paypal,Western Union.

4.Do you provide customized services?

......Yes, we provide customized services, According to customer requirements and description
